Core features

Lithium-Ion Compatible

• Seamless integration with Lithium battery, compatible with multiple Lithium-Ion BMS

Robust components

• Enhanced efficiency and reliability with SIC Hybrid IGBT Module
• High stability long life oil-filled capacitors

Increased scalability

• Supports 8 units with different power modules in parallel for capacity up to 4.8 MW
• Provides an external battery connection capability and use of common batteries between two UPS systems for reduced deployment cost

Outstanding efficiency

• Maximizes system efficiency with Eaton’s patented three-level technology and ESS energy management system
• Provides efficiency up to 97% in double-conversion mode, and 99%+ in ESS mode
• Improves efficiency while reducing energy consumption and cooling requirements with VMMS intelligent module sleep function as an environment-friendly solution

Safety and reliability

• Enhances system reliability with a redundant design for key components such as fans and power supplies
• Minimizes failure rates with overall design, system testing, and comprehensive deployment

Management efficiency

• Provides power and virtual system management with Intelligent Power Management (IPM) software
• Supports automatic storage of application data and safe shutdown of the operating system with Intelligent Power Protection (IPP) software
• Supports many communication accessories and ports

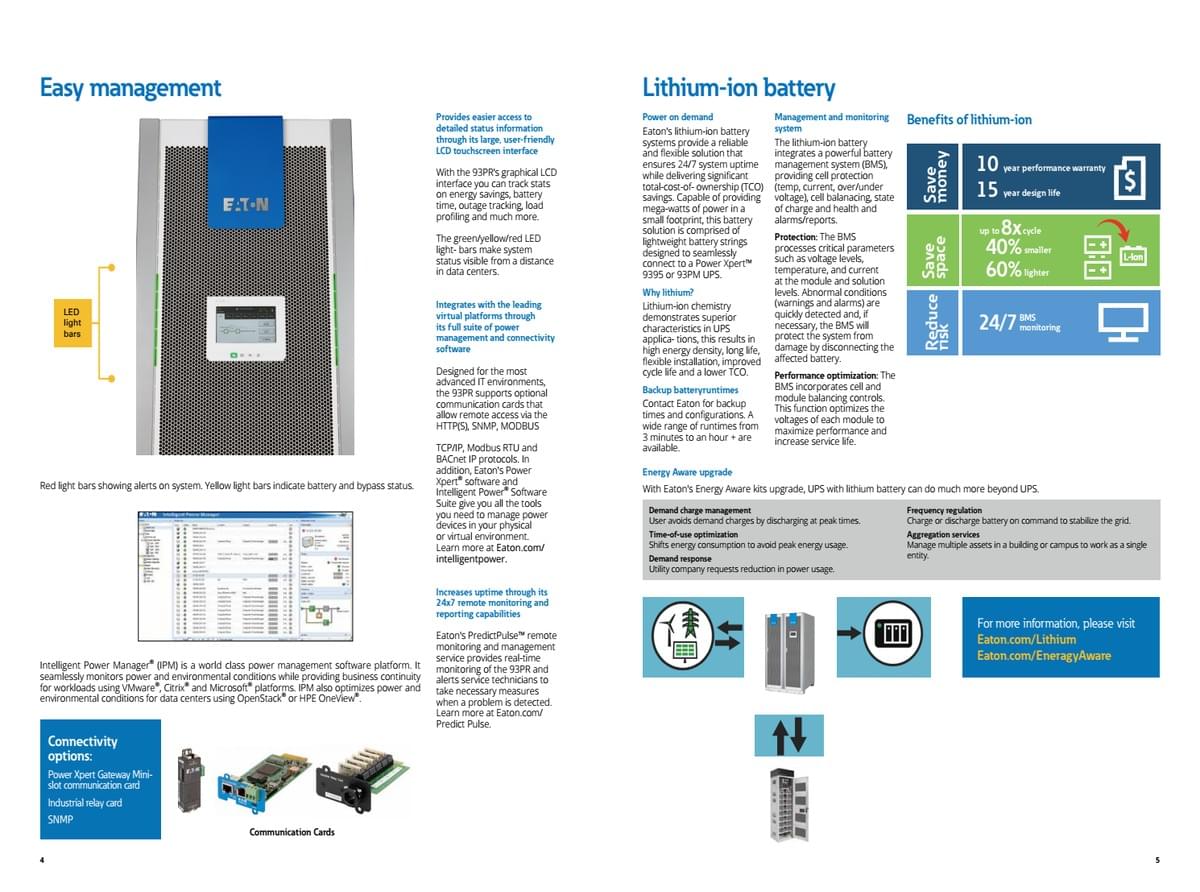

Easy management

• Provides easier access to detailed status information through its 7” user-friendly LCD touchscreen interface
• Integrates with the leading virtual platforms through its full suite of power management and connectivity software
• Increases uptime through its 24x7 remote monitoring and reporting capabilities

Hot swappable and hot scalable

• Power module can be replaced or added while another module continues protecting the load
• Eliminates the need to go to bypass for module replacement or upgrading (MTTR as low as 5 minutes)
